Bunk Bed
Instructions
01
Take out the bed from its case and turn it facing horizontally
02
Lift the latch to open the bed
03
Open the foldable bed to a full vertical position
04
Once the bed is fully open ensure the lock is clicked on the locking bolt
05
Unfold the legs ensuring the leg lock is placed on top of the leg
06
Close the leg lock on the leg to ensure the leg is safely locked
07
Use the 2 handles to flip the bed having the mattress face the top
08
Take out the bunk Bed assembly kit from its case and ensure it includes:
08 a
2 Safety Barriers
08 b
3 step ladder
08 c
4 legs
09

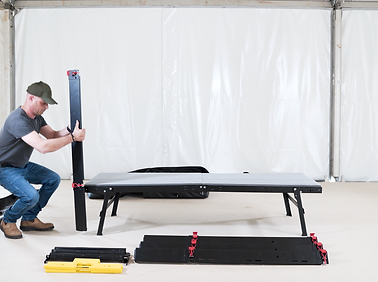

Take 1 leg and lay the bed on the hinges
10
Make sure the locks on the legs are open
11
Once the bed is properly laid on the leg hinges insert the lock hook into designated hole marked on the leg and lock the leg onto the bed frame
12
Do the same for all 4 legs
13
Once the bed is safely locked on all 4 legs ensure all safety locks are closed properly
14
Tilt the bed and kit sideways to have it lay on the floor
15
Open the second bed following steps 1-6 described earlier
16
Once the second bed is fully open attach it to the legs following the steps described earlier
17
After ensuring both the lower bed and the bunk bed are properly connected and locked to the legs, lift the bunk bed and check again that everything is properly connected and locked safely
18
Take the 3-step ladder and insert properly ensuring the ladder is connected safely
19
Install the safety barriers by “tilting & clicking” them on to the bed frame
20
If needed, you can lock the legs of the top bunk from the lower bed by wrapping the bed handles on to the bottom frames of the top bunk bed
21
ENJOY!
